Product Code: SGT
Product Availability: In stock

Swing Gates


  • Three standard designs, two mid-duty grade gate and a heavy-duty gate

  • Swing gates are supplied with latch posts for locking in the open position

  • Galvanised and powder-coated finishes. Custom colours available.

  • Optional sign panels

  • Custom made gates to your specifications (please email your design)

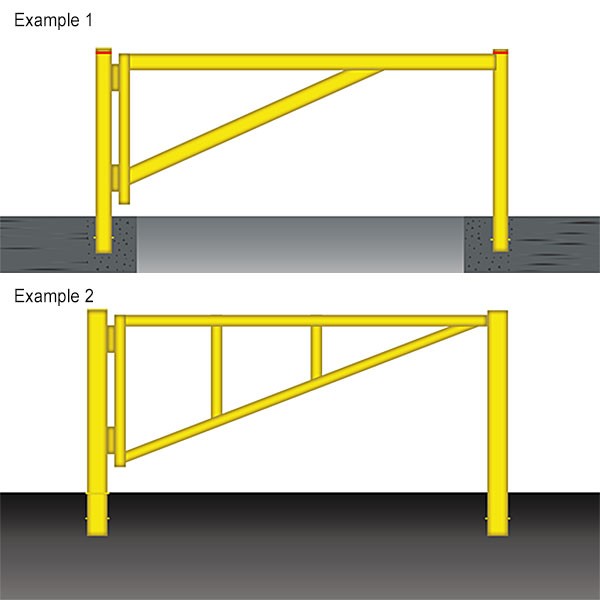

We offer three standard designs of swing gate that are ideal for securing car parks, lane ways, private property or other restricted areas. The gates feature a sturdy in-ground mounting post and a hinged gate-leaf to ensure easy movement. We have two mid-duty gates ideal for car parks and lane ways where vandalism is not a key concern and a heavy-duty gate manufactured from 90mm diameter steel for more remote applications. We manufacture in-house and can offer options such as:

  • Bolt down mounting
  • Secure padlock housing
  • A variety of latch post designs
  • Different powdercoat colours
  • Gate sets that meet and lock together when closed



SKU

Description

Mid-duty gate - 114mm x 42mm Oval rail
SGT/S Swing Gate and Latch Posts for open and closed positions (up to 4m in length)
SGT/L Swing Gate and Latch Post for open and closed positions (4.1m to 6m in length)
SGT/SECURE Secure padlock housing
Mid-duty gate - 60mm diameter rail
SGMDR/S Swing Gate and Latch Posts for open and closed positions (up to 4m in length)
SGMDR/L Swing Gate and Latch Post for open and closed positions (4.1m to 6m in length)
SGT/SECURE Secure padlock housing
Heavy-duty gate - 89mm diameter rail
SGHDR/S Swing Gate and Latch Posts for open and closed positions (up to 4m in length)
SGHDR/L Swing Gate and Latch Posts for open and closed positions (4.1m to 6m in length)
 SGT/SECURE  Secure padlock housing
Product Specifications

Post Diameter Post Height Wall Thickness Gate Rail Height Gate Rail Depth Gate Specifications
SGT/S 140mm 1500mm 5mm 115mm 42mm Up to 4 meters
SGT/L 140mm 1500mm 5mm 115mm 42mm 4.1 meters to 6 meters
Download Download Download
